Delfin Series - Wall-Mounted Split Air Conditioners
Inverter | Single-Zone | Mini-Split

Ductless Split AC

Discover Delfin Split — HETAPRO’s energy-efficient ductless mini-split AC series with inverter control, multi-stage air purification. Contact sales for datasheets & quotes.

ce
emc
rhos

Speak To An Heat Pump Specialist

Data Details

Product Parameter

SEER

A++

Cooling Capacity

7000-22000 BTU

Refrigerant

R32

Sound Pressure

18dB

SCOP

A+

Extreme Outdoor Temperature Conditions

-30℃ to 65℃

Specificities

Unique Features

wifi

WIFI

Smart  Wi-Fi Optional

能效管理

Inverter Technology

Energy saving and more energy-efficient

能耗管理

Natural Refrigerant

R32 refrigerant has a remarkably low Global Warming Potential (GWP) of 675

证书

Fully Certified

CE,EMC,Rohs

控制器

30s Rapid Cooling

Faster frequency up conversion

监控

Quieter Silence

Operating noise as low as 18dB (A)

khcfdc 监控

LED Display

Elegant hidden LED display

智能优化

Advanced I-Clean Technology

I-Clean technology automatically cleans air conditioners by freezing condensation water into ice.

Application

Suitable Scenarios

delfin series split ac suitable scenarios

Residential Cooling Solutions

Differentiating Factors

Key Features

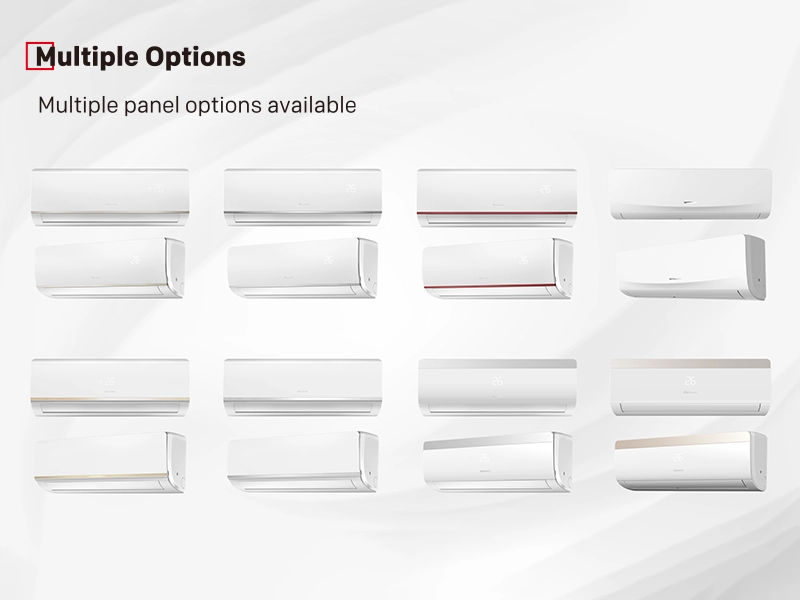

Stylish Appearance

delfin series prodcut details key features multipanel stylish panel
delfin series function icons

Multiple Functions

4-Direction Airflow

delfin series prodcut details key features 4 direction airflow

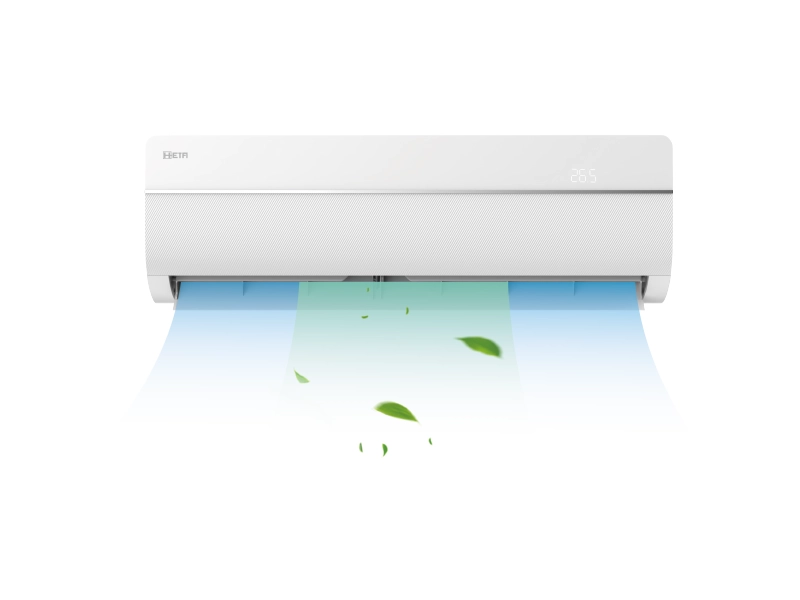

delfin series prodcut details key features filter cleaning reminder

Filter Cleaning Reminder

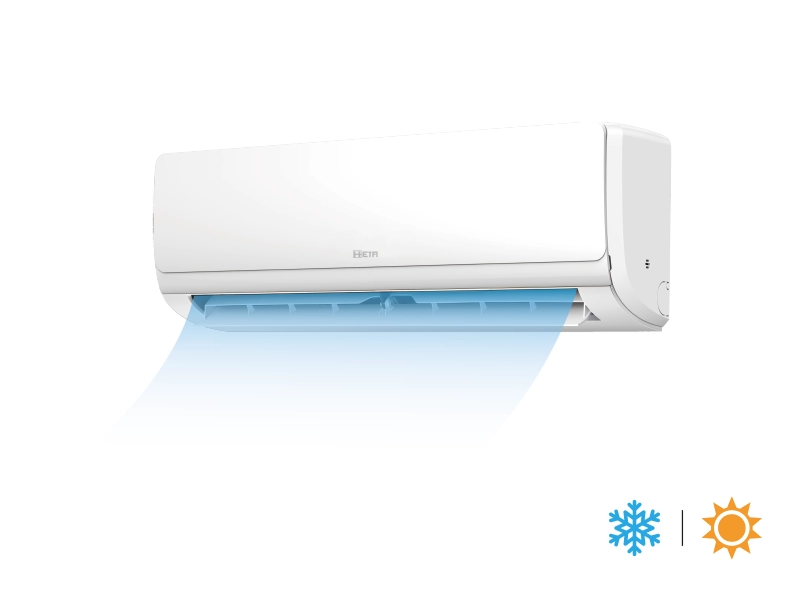

Turbo Cooling/Heating

delfin series prodcut details key features turbo cooling heating
Model Name 7000 BTU 9000 BTU 12000 BTU 18000 BTU 24000BTU
Capacity Cooling BTU/h 7000 9000 12000 18000 22000
Heating BTU/h 7000 9000 12000 18000 22000
Airflow Volume m³/h 520/440/230/150 520/440/230/150 550/470/250/180 850/720/610/520 1200/1150/900/750
IDU Dimension W×H×D mm 792x279x195 792x279x195 792x279x195 972x302x224 1081x327x248

FAQs

Turn off power, open the indoor unit, remove the washable filter, rinse with lukewarm water, let it dry completely, then reinstall.

Installation costs vary widely by region, model capacity, and job complexity; expect a range rather than a fixed price.

Inverter units vary compressor speed for precise temperature control and higher efficiency; non-inverter units run at fixed speed.

Mini-splits are ideal for zoned cooling, retrofits and where ducts aren’t feasible; central systems suit whole-house conditioning when ducts already exist.

Estimate required BTU by room area and usage — roughly 9,000 BTU for small rooms (~100–150 sq ft), 12,000 BTU for medium rooms, etc.

Common causes are dirty filters, blocked outdoor airflow, low refrigerant, incorrect mode/settings, or a failing compressor.

Modern mini-splits typically use R32 or R410A; some low-GWP models offer R290 (propane) with special safety requirements.

Indoor unit noise varies by model but can be as low as ~18 dB(A) at minimum fan speed for quiet models.

Have a qualified technician service the system at least once per year; twice a year is recommended in heavy-use climates.

Turn off power, clean filters, protect the outdoor unit from debris and heavy snow, and follow manufacturer guidance for long-term storage.

With proper maintenance, split systems commonly last 10–15 years; heat pump components and compressor life vary by use and care.

Compressor replacement costs depend on model and region; it is often expensive and sometimes approaches the cost of a replacement unit.

Yes. Efficiency is measured by SEER (cooling) and HSPF (heating) ratings; higher SEER means lower energy consumption.
