Duct Series -
Slim Ducted Air Conditioning System

Ducted System - Low Static & Mid Static AC

Powerful Cooling & Heating with Slim, Concealed Design

ce
emc
rhos

Speak To An Air Conditioner Specialist

Data Details

Product Parameter

Airflow Volume

920–2150 m³/h

Ultra-slim

210mm

Cooling Capacity

18000-48000 BTU

Power Supply

Single-phase & Three-phase options

Refrigerant

R32

Best for

Bedrooms, small apartments, and private offices

Specificities

Unique Features

wifi

WIFI

Smart  Wi-Fi Optional

能效管理

Inverter Technology

Energy saving and more energy-efficient

能耗管理

Natural Refrigerant

R32 refrigerant has a remarkably low Global Warming Potential (GWP) of 675

证书

Fully Certified

CE,EMC,Rohs

Application

Suitable Scenes

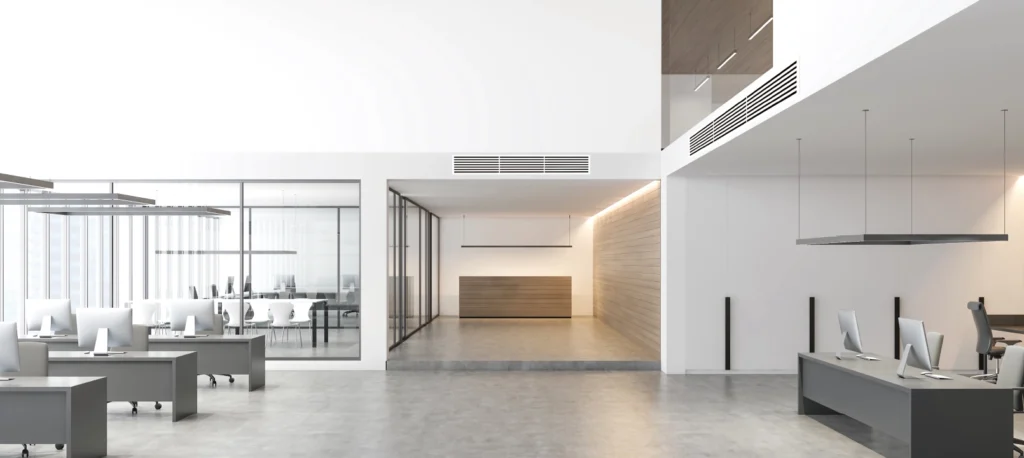

duct series ac scene

Light Commercial Cooling Solutions

Differentiating Factors

Key Features

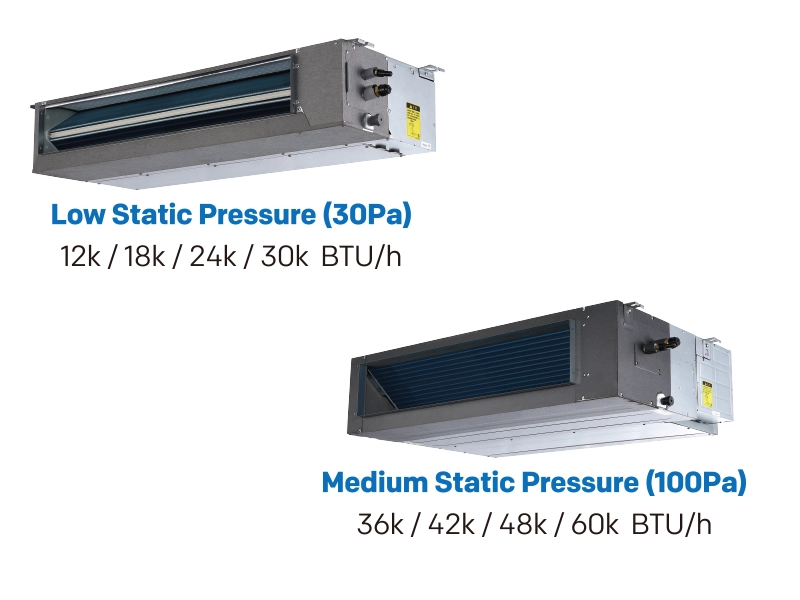

Available in two static pressure models

duct series ac key features available in two static pressure models
cassette series ceiling mounted inverter ac fanctions

Multiple Functions

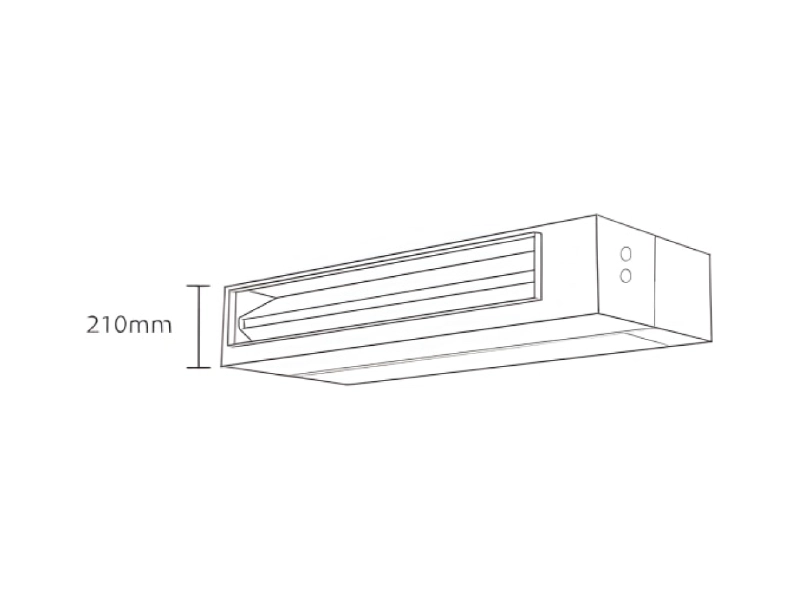

Ultra-thin Body, Convenient To Install

duct series ac key features ultra thin body, convenient to install
duct series ac key features access control and fire alarm connected

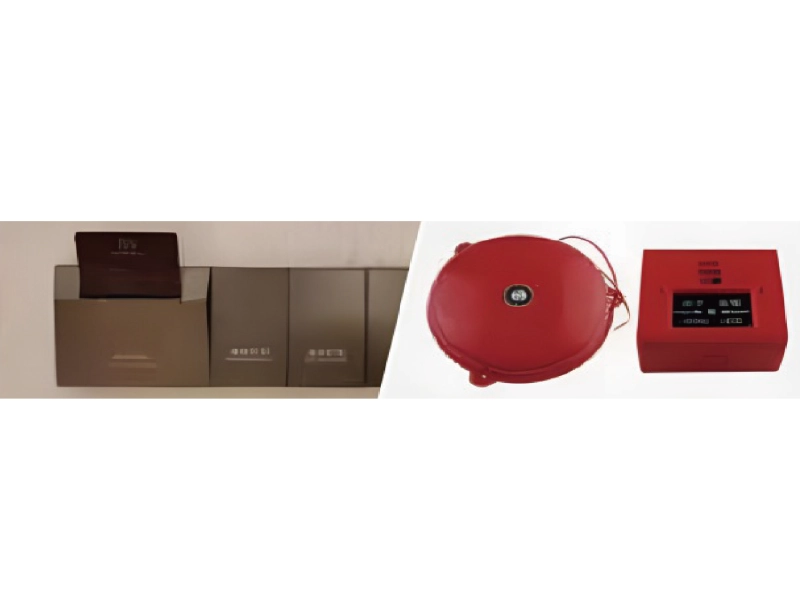

Access Control And Fire Alarm Connected

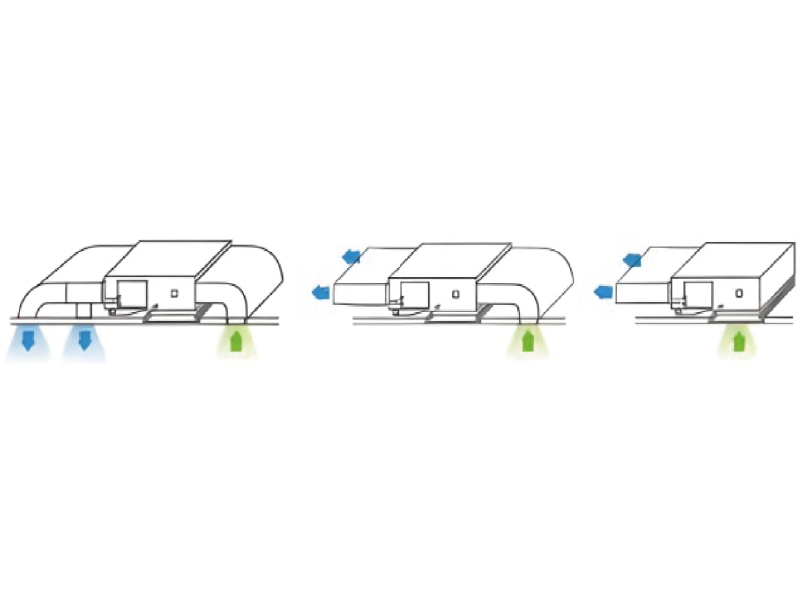

Multi-stage Static Pressure

duct series ac key features multi stage static pressure
duct series ac key features adjustable air return method

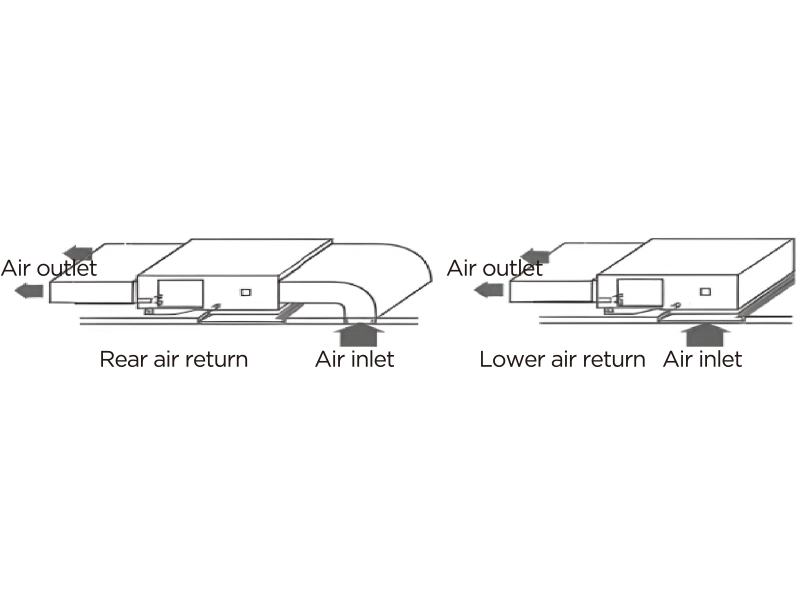

Adjustable Air Return Method

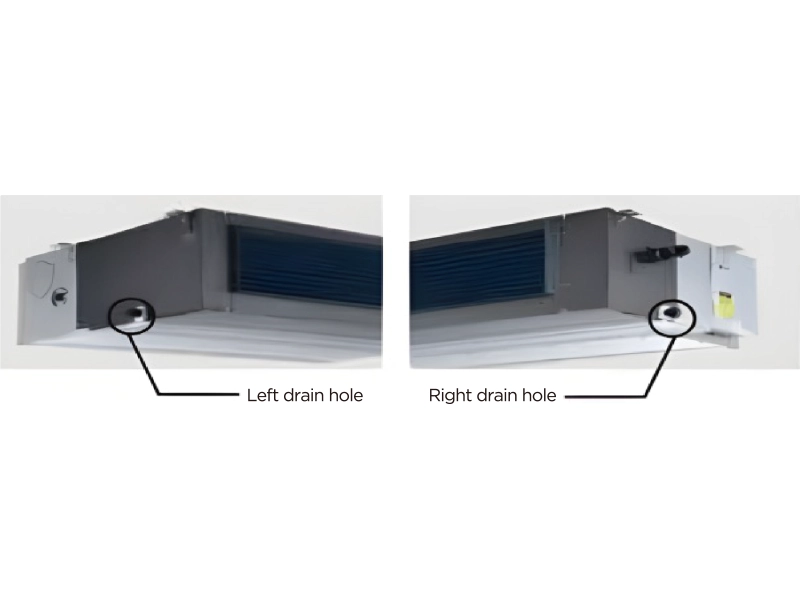

Drainage On Both Sides

duct series ac key features drainage on both sides
duct series ac key features high efficiency low noise motor

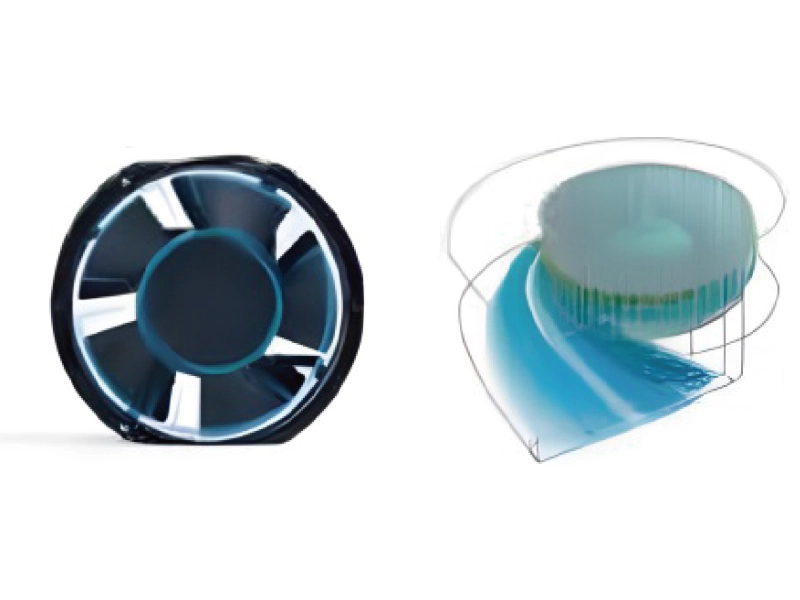

High-efficiency Low Noise Motor

High-Performance Compressor

lyra series floor standing inverter ac key features 4 high performance compressor
duct series ac key features wifi control function (optional)

Wifi Control Function (Optional)

UVC Sterilization Function (Optional)

duct series ac key features uvc sterilization function (optional)
Model Name SDVH18M-A3NA SDVH24M-A3NA SDVH36M-A4NA SDVH48H-E1NA
Capacity Cooling BTU/h 18000 24000 36000 48000
Heating BTU/h 18000 24000 36000 48000
Power Supply Ph/V/Hz 1 Ph,220~240 V,50 Hz 3Ph, 380~415 V, 50Hz
Airflow Volume m3/h 920 1300 2000 2150
Dimension W×H×D mm 1000x450x200 1300x450x200 1430x715x280 1430x715x280

FAQs

It provides whole-building comfort with hidden installation, ensuring even airflow across multiple rooms.

Yes, the range supports everything from small apartments to industrial facilities.

Yes, all HETAPRO ducted units are equipped with inverter-driven compressors.

We recommend cleaning filters every 3 months and scheduling annual professional servicing.

HETAPRO offers similar advanced features—like energy efficiency and quiet performance—at more competitive pricing for B2B partners.

Yes, all units are designed with environmentally safe refrigerants.
