LYRA Series -
Floor Standing Split Air Conditioners
15m Long Distance Air Supply | 0.5W Standby

Floor Standing Air Conditioning Systems

Discover LYRA Series Split AC – HETAPRO’s energy-efficient ductless floor standing Air Conditioning Unit with inverter control, multi-stage air purification. Contact sales for datasheets & quotes.

ce
emc
rhos

Speak To An Air Conditioner Specialist

Data Details

Product Parameter

SEER

A

SCOP

A

Cooling Capacity

48000 BTU

Indoor Unit Sound Pressure

44-45dB(A)

Refrigerant

R32

Extreme Outdoor Temperature Conditions

-30℃ to 65℃

Specificities

Unique Features

wifi

WIFI

Smart  Wi-Fi Optional

能效管理

Inverter Technology

Energy saving and more energy-efficient

能耗管理

Natural Refrigerant

R32 refrigerant has a remarkably low Global Warming Potential (GWP) of 675

证书

Fully Certified

CE,EMC,Rohs

控制器

30s Rapid Cooling

Faster frequency up conversion

监控

Quieter Silence

44-45dB (A)

khcfdc 监控

LED Display

Elegant hidden LED display

智能优化

Advanced I-Clean Technology

I-Clean technology automatically cleans air conditioners by freezing condensation water into ice.

Application

Suitable Scenarios

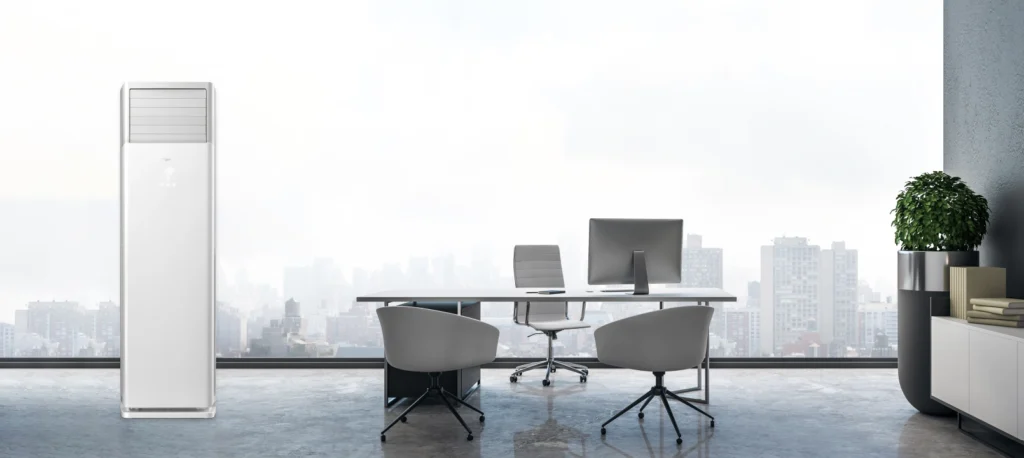

lyra series floor standing inverter ac scene

Light Commercial Cooling Solutions

Differentiating Factors

Key Features

Stylish Appearance

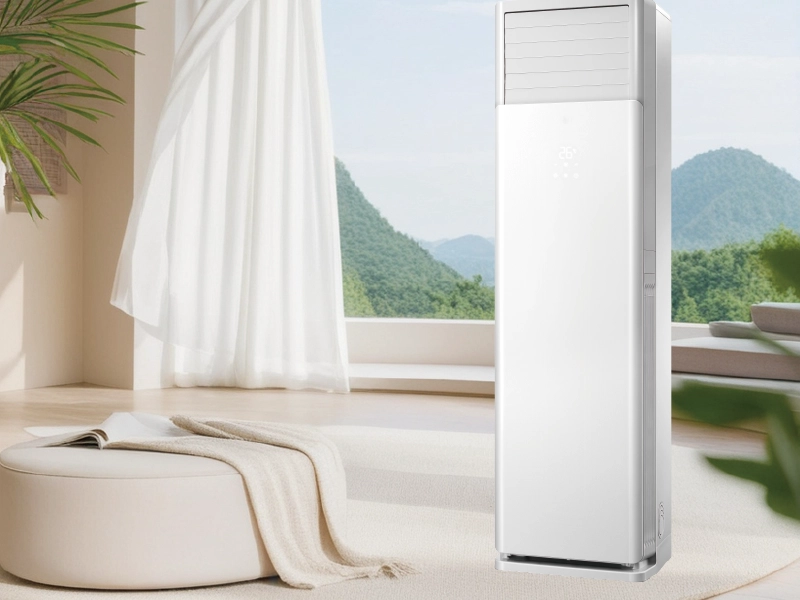

lyra series floor standing inverter ac key features
lyra series floor standing inverter ac fanctions

Multiple Functions

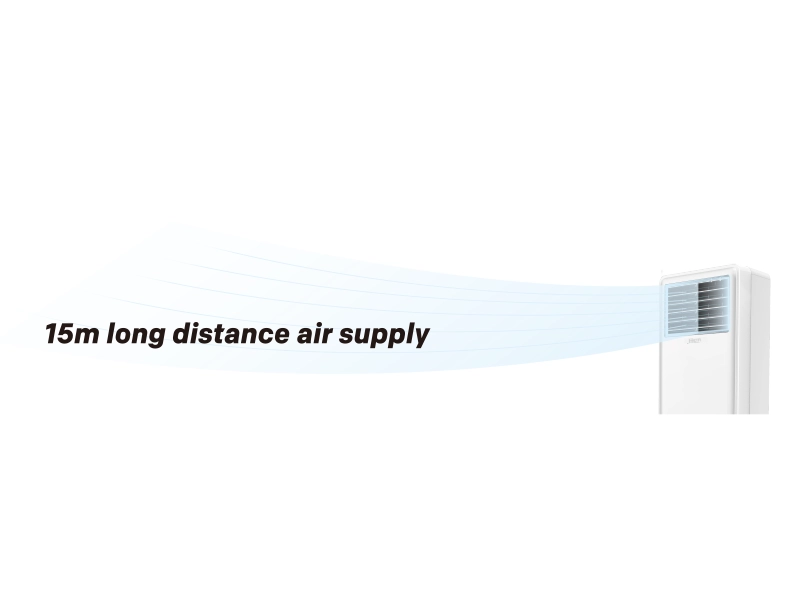

15m Long Distance Air Supply

lyra series floor standing inverter ac key features 2 15m long distance air supply

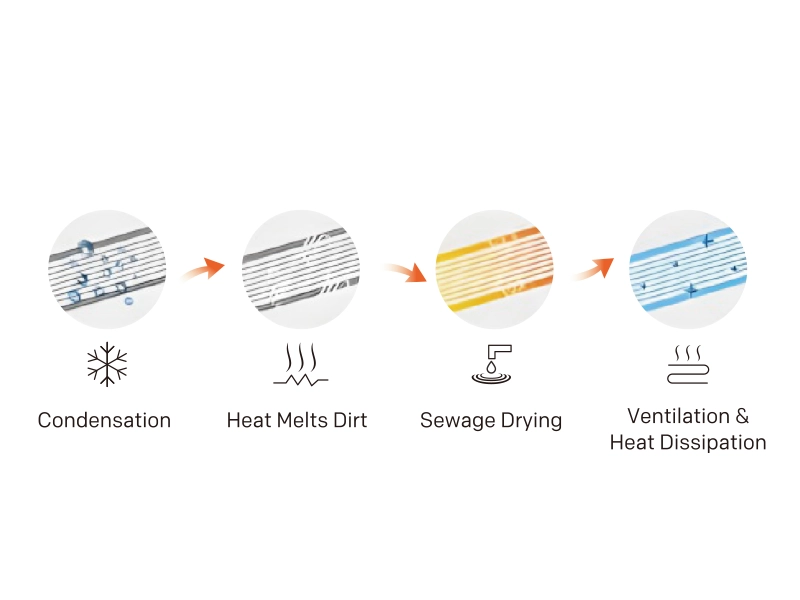

lyra series floor standing inverter ac key features 3 self cleaning

Self-cleaning

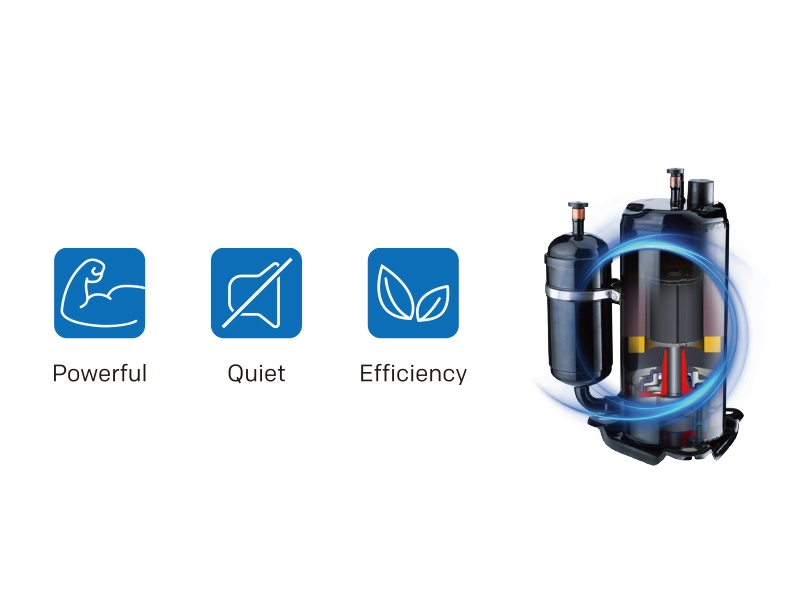

High-Performance Compressor

lyra series floor standing inverter ac key features 4 high performance compressor
Model Name 48000 BTU
Capacity Cooling BTU/h 48000
Heating BTU/h 48000
EER/COP BTU/h/W 3.0/3.46
Power Supply Ph/V/Hz 3 Ph,380~415 V,50 Hz
Power Input Cooling W 4670
Heating W 4050
Rated Current Cooling A 8.41
Heating A 7.3
Indoor Unit Airflow Volume m³/h 10.5/6.2
Sound Pressure Level dB(A) 44~45
Dimension (W×H×D) mm 582X1890X388
N.W/G.W kg 58/68
Outdoor Unit Sound Pressure Level m³/h 60
Piping Connecting dB(A) Φ9.52+φ16
Dimension (W×H×D) mm 1020x1350x396
N.W/G.W kg 99/109
Loading Quantity 40HQ 43

FAQs

Turn off power, open the indoor unit, remove the washable filter, rinse with lukewarm water, let it dry completely, then reinstall.

Installation costs vary widely by region, model capacity, and job complexity; expect a range rather than a fixed price.

Inverter units vary compressor speed for precise temperature control and higher efficiency; non-inverter units run at fixed speed.

Mini-splits are ideal for zoned cooling, retrofits and where ducts aren’t feasible; central systems suit whole-house conditioning when ducts already exist.

Estimate required BTU by room area and usage — roughly 9,000 BTU for small rooms (~100–150 sq ft), 12,000 BTU for medium rooms, etc.

Common causes are dirty filters, blocked outdoor airflow, low refrigerant, incorrect mode/settings, or a failing compressor.

Modern mini-splits typically use R32 or R410A; some low-GWP models offer R290 (propane) with special safety requirements.

Indoor unit noise varies by model but can be as low as ~18 dB(A) at minimum fan speed for quiet models.

Have a qualified technician service the system at least once per year; twice a year is recommended in heavy-use climates.

Turn off power, clean filters, protect the outdoor unit from debris and heavy snow, and follow manufacturer guidance for long-term storage.

With proper maintenance, split systems commonly last 10–15 years; heat pump components and compressor life vary by use and care.

Compressor replacement costs depend on model and region; it is often expensive and sometimes approaches the cost of a replacement unit.

Yes. Efficiency is measured by SEER (cooling) and HSPF (heating) ratings; higher SEER means lower energy consumption.
