Cassette Series -
Ceiling-mounted Split Air Conditioners

Inverter Cassette Type Air Conditioner

Discover Hetapro Cassette Air Conditioners with 360° airflow, slim design, inverter technology, and eco-friendly R32 refrigerant. Ideal for offices, hotels, and retail.

ce
emc
rhos

Speak To An Air Conditioner Specialist

Data Details

Product Parameter

SEER

A

SCOP

A

Cooling Capacity

18000-55000 BTU

Power Supply

1 Ph,220~240 V,50 Hz | 3Ph, 380~415 V, 50Hz

Refrigerant

R32

Extreme Outdoor Temperature Conditions

-30℃ to 65℃

Specificities

Unique Features

wifi

WIFI

Smart  Wi-Fi Optional

能效管理

Inverter Technology

Energy saving and more energy-efficient

能耗管理

Natural Refrigerant

R32 refrigerant has a remarkably low Global Warming Potential (GWP) of 675

证书

Fully Certified

CE,EMC,Rohs

控制器

30s Rapid Cooling

Faster frequency up conversion

监控

Quieter Silence

46-53dB (A)

khcfdc 监控

LED Display

Elegant hidden LED display

智能优化

Advanced I-Clean Technology

I-Clean technology automatically cleans air conditioners by freezing condensation water into ice.

Application

Suitable Scenes

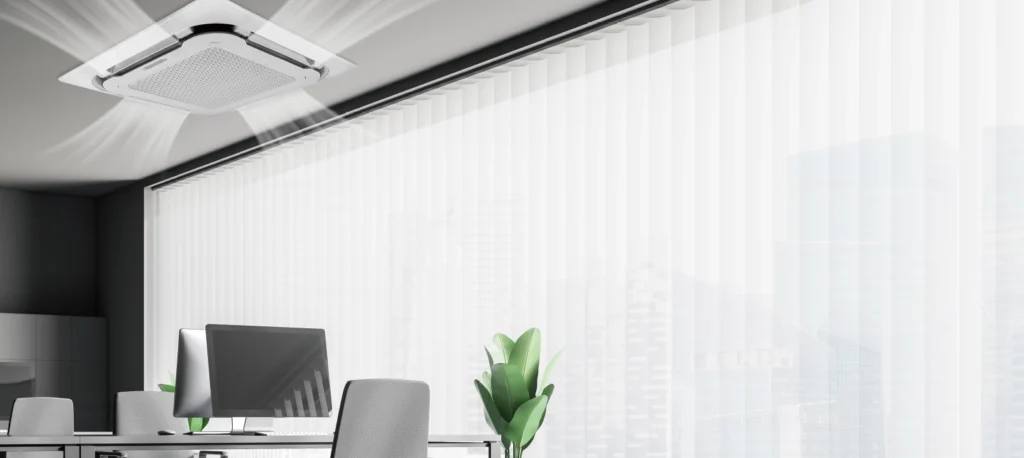

cassette series ac scene

Light Commercial Cooling Solutions

Differentiating Factors

Key Features

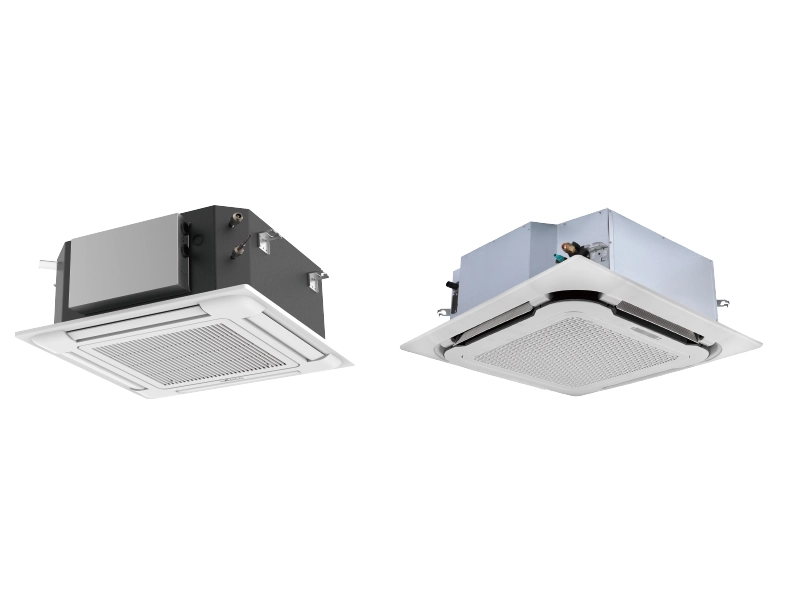

Stylish Appearance

cassette series ac key features appearances
cassette series ceiling mounted inverter ac fanctions

Multiple Functions

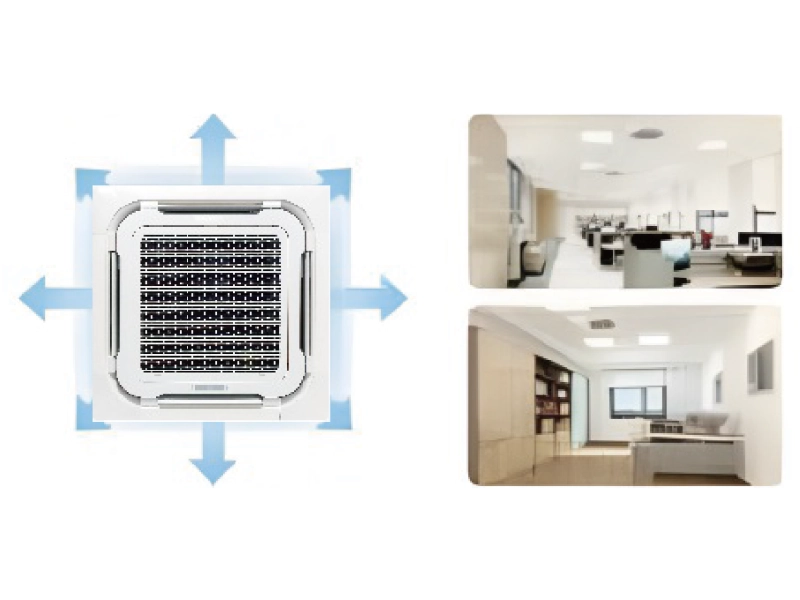

360° Air Supply, No Dead Angle

cassette series ac key features 360° air supply, no dead angle
cassette series ac key features long piping design, flexible installation

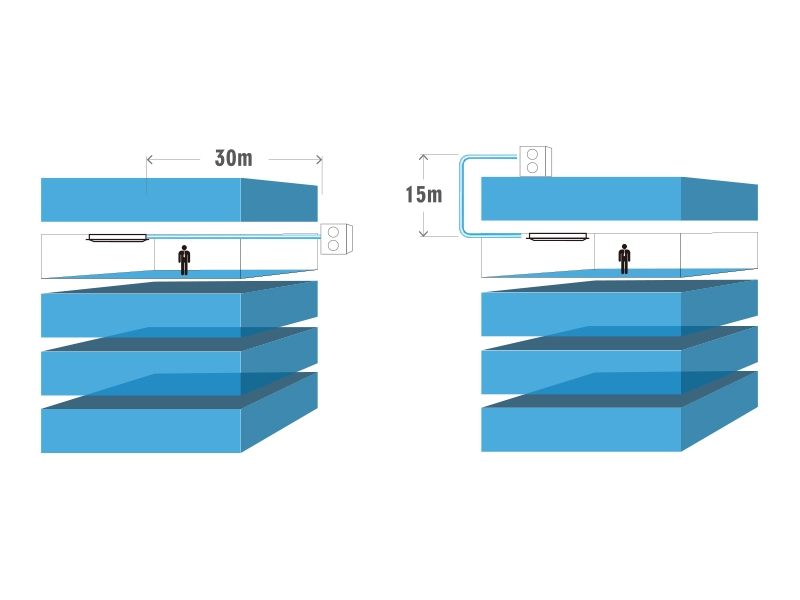

Long Piping Design, Flexible Installation

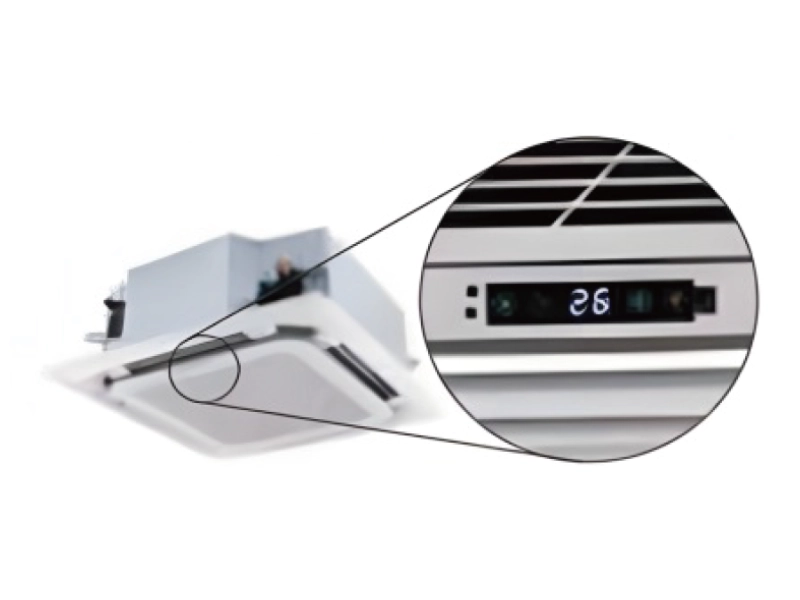

LED Digital Display Panel

cassette series ac key features led digital display panel
cassette series ac key features wifi control function (optional)

Wifi Control Function (Optional)

High-Performance Compressor

lyra series floor standing inverter ac key features 4 high performance compressor
Model Name SCVH18A-A3NB SCVH24A-A3NA SCVH36A-A3NA SCVH48A-E1NA SCVH60A-E1NA
Capacity Cooling BTU/h 18000 24000 36000 48000 55000
Heating BTU/h 18000 24000 36000 48000 55000
Power Supply Ph/V/Hz 1 Ph,220~240 V,50 Hz 3Ph, 380~415 V, 50Hz
Airflow Volume m3/h 1000 1250 2000 2100 2100
Sound Pressure Level dB(A)(H/M/L) 46/42/39/36 46/42/39/36 53/49/44/42 53/49/44/42 53/49/44
Dimension Body W×H×D mm 840X840X225 840X840X225 840X840X225 840X840X300 840X840X300
Panel W×H×D mm 950X950X65 950X950X65 950X950X65 950X950X65 950X950X65

FAQs

A cassette AC is a ceiling-mounted unit that distributes cool air in four directions, ensuring even cooling across large spaces.

They are ideal for offices, hotels, restaurants, classrooms, and retail stores where ceiling space is available.

Yes, Hetapro cassette ACs use inverter technology and R32 refrigerant, which makes them highly energy efficient.

Filters should be cleaned every 3–6 months depending on usage and environment.

Yes, they are compatible with wired/wireless controllers and BMS integration.

With proper maintenance, a Hetapro cassette AC can last 12–15 years.
